Mityvac MV8500 Silverline Elite Automotive Test Kit Brake Bleeder

Mityvac MV8500 Silverline Elite Automotive Test Kit Brake Bleeder
Our Price  £128.95
List Price  £279.00
Saving Of  54%
(£107.46 Exc. VAT)

Part Number:  JS-MV8500
Brand:  Mityvac

Best Selling Kit includes everything for performing hundreds of automotive diagnostic and mechanical tests.(great for one-person brake bleeding.)

  (1 Review)

Mityvac

Share

Mityvac MV8500

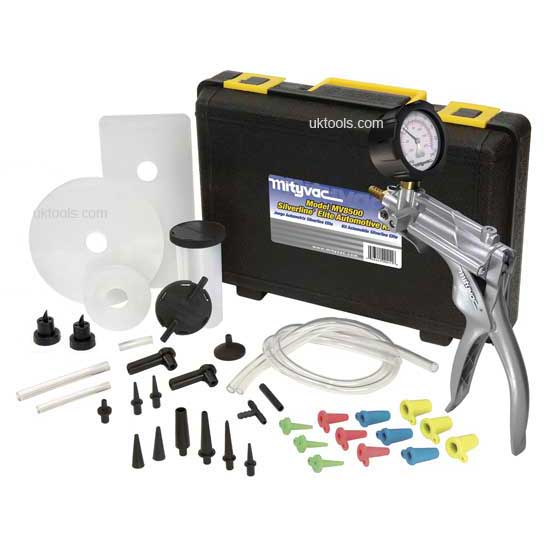

MV8500 Silverline Elite Automotive Kit

Kit includes everything for performing hundreds of automotive diagnostic and mechanical tests.

  • Used for one-person brake bleeding.
  • Produces vacuum or pressure at the turn of a switch
  • Comfortable ergonomic design
  • One-finger trigger vacuum/pressure release
  • Pressure and vacuum are created on the squeeze stroke for superior accuracy and control
  • Includes durable, accurate diaphragm style compound pressure/vacuum gauge





Includes:

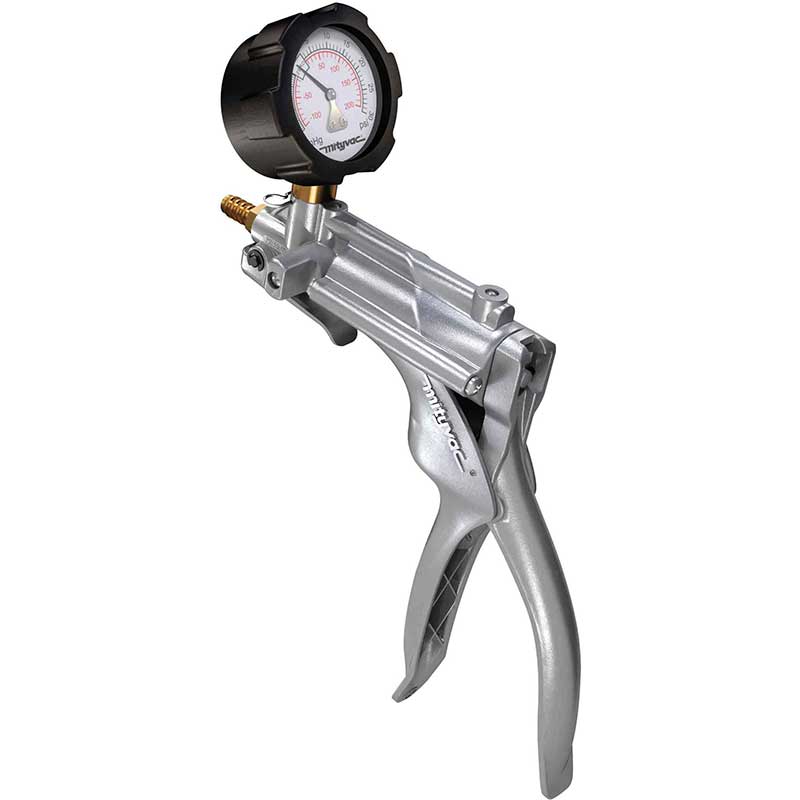

  • Silverline Elite hand vacuum/pressure pump w/ 2” (50 mm) compound gauge w/ rubber boot
  • 4.5 oz. (135 ml) fluid reservoir bottle w/ fluid transfer and storage lids
  • 4 Tapered adapters for connecting to tubing from .09” (2.3 mm) to .50” (13 mm) ID
  • 2 Tapered manifold plugs
  • 4 Universal bleed screw adapters
  • 12 Vacuum cap plugs
  • Vacuum line T-adapter
  • (2) ?” (6.4 mm) ID x 24” (610 mm) long connection tubes
  • 5/32” (4 mm) ID x ?” (6.4 mm) ID tubing adapter
  • 3 Connection tubes
  • Rubber cupped adapter
  • Master Cylinder Refill Kit (model no. MVA6825)
  • Custom Molded Case
  • User&#39s Manual (English, French, Spanish, German)


Specifications:


Packaged Weight:
Packaged Size:

Pump Displacement:
Max. Vacuum:
Max. Pressure: 		5.5 lbs (2.5 kg)
12.9” (330 mm) x 9.8” (250 mm) x 4.5” (115 mm)
1 cubic inch (16cc) per stroke
25 in Hg (85kPa)
30+ psi (207+ kPa)

Recommended replacement for the discontinued Silverline Kit MV4000
Average Rating (1 Review):
Write a Review and share your opinions!
Rating:
Excellent
17 June 2023  |

There are far cheaper kits on the market but I wanted one that had some quality and built to last all metal hand pump, this works beautifully. And can be used for pressurising too, I've read elsewhere with the vacuum system air can be drawn in via the bleed nipple threads in use, the solution is easy and simple, remove the nipple coat the threads in brake rubber grease and refit it then do the bleed, this stops air getting in by the threads when the nipple is loosened, the rubber grease has the added advantage of stopping the nipple seizing up too. Good tool glad I got it.

Was this helpful to you?  Yes  /  No

1 of 1 people found this review helpful.
